Views: 286 Author: Site Editor Publish Time: 2026-04-15 Origin: Site
Steel structures resist pests, mold, fire, and corrosion, which lowers maintenance requirements and extends service life.
Insulation and design improvements optimize energy efficiency, reducing heating, cooling, and lighting costs.
Expert advice and premium products help ensure warehouse projects achieve lasting success.
Choose clear-span designs for steel warehouses to maximize usable space and flexibility. This design can increase storage density by 19%.
Plan for height and layout flexibility to accommodate future needs. Higher ceilings support advanced storage systems and improve operational efficiency.
Invest in a strong foundation and quality materials to ensure stability and longevity. Proper site assessment is crucial for a successful build.
Regular maintenance and inspections can extend the life of steel warehouses. Simple practices can reduce corrosion-related costs by 35% each year.
Integrate advanced technology and design for scalability to keep warehouses competitive. This approach allows for easy modifications as business needs change.
Maximizing usable space stands as a primary goal in steel structure for warehouses. Modern designs often feature column-free interiors, which allow for wide, open areas without internal supports. This approach increases flexibility and makes it easier to adjust layouts as business needs change. Clear-span engineering in steel structure warehouses can provide up to 90% column-free interiors, resulting in 40% more functional space compared to traditional buildings. These designs support efficient movement, safer operations, and better use of every inch of floor space.
Steel structure for warehouses can achieve spans over 150 feet (46 meters) without internal columns. This design leads to a 19% increase in storage density and allows for unobstructed operations. Many steel structure warehouses now create column-free spaces that exceed 60 meters, which is much larger than what traditional structures offer. With no load-bearing interior walls, businesses can adjust machinery layouts or add new features without major structural changes. This flexibility reduces downtime and supports growth.
Tip: Choosing a clear-span steel structure for warehouses ensures adaptability for future expansion or reconfiguration, making it a smart investment for dynamic industries.
Warehouse height plays a key role in storage capacity and operational efficiency. Designs with greater internal height allow for high-bay racking systems and vertical storage solutions. This approach maximizes the use of space and supports advanced logistics operations. The roof slope and truss depth also affect the overall height and usable area within steel structure warehouses.
Key Vertical Design Factors | Description |
|---|---|
Clear internal height below roof structure | Essential for maximizing vertical storage and accommodating high-bay racking systems. |
Roof slope and truss depth | Influences the overall height and usable space within the warehouse. |
Integration of lighting, sprinklers, and ventilation | Necessary for maintaining safety and operational efficiency in high-capacity environments. |
Future racking height increases | Planning for potential increases in racking height can enhance long-term storage capacity. |
Steel structure for warehouses often feature designs that support easy changes in layout. This flexibility allows for the integration of new technology, changes in workflow, or the addition of mezzanines and offices. Jiangsu Lianfang Steel Structure Engineering Co., Ltd. recommends planning for future needs during the design phase to ensure long-term value.
Load-bearing capacity is a critical factor in steel structure for warehouses. The structure must support the weight of stored goods, equipment, and building systems. Different industries require different load capacities. For example, light storage facilities may need 125–250 pounds per square foot, while heavy industrial warehouses may require 300–500+ pounds per square foot. Roof systems must also handle weather loads, typically 20–40 pounds per square foot.
Warehouse Type | Load-Bearing Capacity (pounds per square foot) |
|---|---|
Light Storage Facilities | 125 - 250 psf |
Heavy Industrial Warehouses | 300 - 500+ psf |
Roof System (basic weather loads) | 20 - 40 psf |
Engineers use advanced analysis software and three-dimensional modeling to optimize load capacity. They select materials with the right strength, configure the structure to distribute loads evenly, and place beams and columns strategically. Careful analysis of dead, live, wind, and seismic loads ensures safety and performance. Planning for future modifications helps maintain adaptability without sacrificing load-bearing capacity.
A strong foundation is essential for the stability and longevity of steel structure for warehouses. Foundation preparation cannot be changed easily after construction, so it requires careful planning and execution.
A perfectly prepared site and a precisely poured foundation are non-negotiable for the building's stability and long-term health.
Site conditions, such as soil type and topography, influence foundation choices. A geotechnical report provides data on soil bearing capacity and groundwater levels. Solid soil allows for independent foundations linked to steel columns, while soft soil may require piles to transfer weight to stable layers. Proper site assessment ensures the foundation matches the building's load and environmental demands.
Industry leaders like Jiangsu Lianfang Steel Structure Engineering Co., Ltd. follow best practices in foundation design. They use high-quality materials and precise construction methods to ensure long-term performance. Investing in a well-designed foundation protects the entire structure and supports decades of reliable service.
Steel structure buildings rely on materials with superior strength to achieve high load capacity and durability. Engineers select steel types based on their strength, corrosion resistance, and application needs. The table below shows common steel types used in steel structure warehouse construction:
Steel Type | Strength | Corrosion Resistance | Applications |
|---|---|---|---|
Carbon Steel | High load-bearing capacity | Limited | Structural beams, general construction |
High-Strength Low-Alloy (HSLA) Steel | Very high strength | Moderate | Structural beams, heavy-duty applications |
Weathering Steel | Good strength, excellent corrosion resistance | Excellent | Outdoor structures, bridges |
Stainless Steel | High strength, excellent corrosion resistance | Excellent | Environments requiring corrosion resistance, food processing equipment |
Steel structure buildings benefit from superior strength, which allows for greater spans and higher load capacity. This strength supports heavy equipment, tall racking systems, and flexible layouts. The right steel type ensures the structure meets both current and future capacity demands.
Proper insulation is essential for steel structure buildings. It improves thermal efficiency, protects stored products, and reduces operational expenses. The most effective insulation materials include:
Foil-Foam Combination Products:
BlueTex Pro 2mm: Reflects 97% of radiant heat, provides R-1 thermal resistance, acts as a vapor barrier.
BlueTex Supreme 6mm: Thicker, offers better moisture control, suitable for semi-conditioned spaces.
Traditional Insulation Types:
Batt and Blanket Insulation: Made from fiberglass or mineral wool, effective for thermal resistance.
Spray Foam Insulation: Superior thermal resistance and air-sealing properties.
Rigid Board Insulation: Durable and efficient, made from polyisocyanurate or extruded polystyrene.
Insulation upgrades in steel structure warehouse designs can lower heating and cooling costs, reduce energy demand, and protect inventory.
Benefit | Impact on Energy Consumption and Costs |
|---|---|
Enhanced thermal efficiency | Reduces energy demand and lowers utility bills. |
Compliance with energy codes | Avoids higher operating costs and inspection failures. |
Protection of stored products | Prevents damage from humidity and extreme temperatures, reducing losses. |
Lower operational expenses | Modest insulation improvements can significantly cut heating and cooling costs. |
Sustainability improvements | Reduced carbon emissions align with corporate sustainability goals. |
Steel structure buildings must meet strict fire resistance standards to ensure safety and protect assets. Chinese building codes require different fire resistance ratings for steel structure warehouse designs:
Fire Resistance Rating | Duration of Fire Resistance (hours) |
|---|---|
I | 3.0 |
II | 2.5 |
III | 2.0 |
IV | 0.5 |
Fireproofing methods include fireproof coatings, board cladding, concrete encasing, and internal water-cooling systems. Fireproof coatings offer flexible protection and high fire resistance ratings. Board cladding provides durability and ease of construction. Concrete encasing increases structural rigidity. Water-cooling systems deliver advanced protection for critical structures.
Choosing the right fireproofing method ensures steel structure buildings maintain superior strength and load-bearing capacity during emergencies.
Steel structure warehouses face corrosion risks, especially in humid or coastal regions. Effective protection methods help extend the building's lifespan and maintain structural integrity. Common strategies include:
Galvanized steel coatings can reduce corrosion rates by up to 93% in coastal environments.
Epoxy-based finishes prevent chemical degradation in industrial settings.
Hot-dip galvanizing immerses steel in molten zinc, creating a strong barrier and cathodic protection.
Thermal sprayed zinc or aluminum offers over 50 years of protection by applying a durable metallic layer.
Primer systems with rust-inhibiting pigments and zinc-rich epoxy primers provide dense barriers against moisture.
Topcoats add weather resistance and shield steel from UV exposure.
Routine biannual inspections for coating wear and prompt replacement of compromised fasteners are essential. These practices help prevent early signs of rust and maintain the effectiveness of protective systems.
Steel structure warehouses must withstand a range of environmental conditions. The following table highlights key factors that influence durability:
Factor | Description |
|---|---|
Material Selection | Choose heat-resistant and strong materials for stability in extreme conditions. |
Protective Coatings | Select coatings that resist corrosion, UV rays, and temperature changes. |
Maintenance Practices | Schedule regular inspections and upkeep, especially in harsh climates. |
Structural Reinforcements | Use bracings and trusses to distribute loads during severe weather events. |
Proper planning and material selection help steel warehouses perform reliably in diverse environments.
Regular maintenance is vital for extending the service life of steel structure warehouses. Recommended practices include:
Conduct biannual inspections of stress points, welds, fasteners, and base plates to detect rust or cracks early.
Apply and maintain protective coatings such as epoxy-zinc primers and polyurethane topcoats.
Use advanced inspection tools like drones and infrared thermography for efficient monitoring.
Manage moisture with ventilation, vapor barriers, and dehumidification.
Repair scratches and corrosion promptly with cold galvanizing compounds.
Maintain door seals, roof integrity, and fasteners.
Ensure proper drainage by clearing gutters and grading terrain.
Facilities with structured maintenance calendars can reduce corrosion-related costs by 35% each year. Regular upkeep lowers the risk of major repairs and improves the return on investment for warehouse owners.

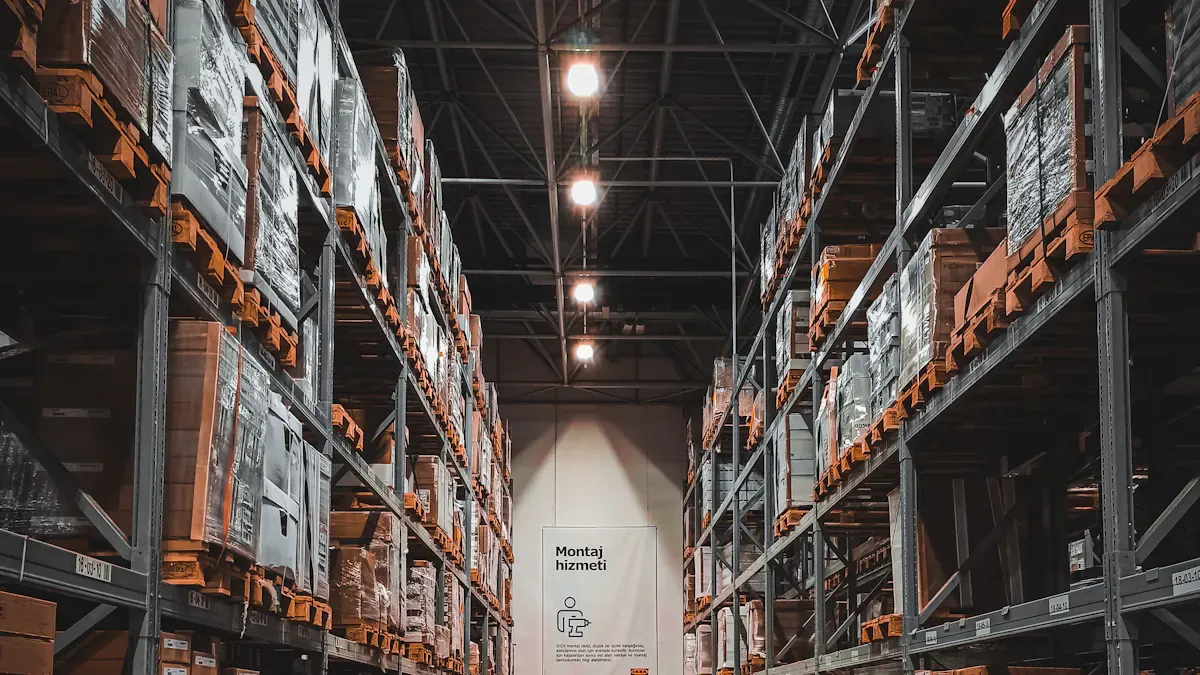

Functional design is essential for warehouses that require high efficiency and smooth operations. Clear-span frames eliminate interior columns, creating open spaces that improve movement and workflow. Customizable dimensions allow the building to fit specific equipment, which increases accessibility. Large roll-up doors make vehicle access easy, streamlining daily tasks. Flexible interior floor plans support mezzanine levels and adaptable layouts, optimizing storage efficiency. Heavy-duty shelving and storage systems organize tools and materials, reducing clutter and improving workflow.
Feature | Description |
|---|---|
Clear-span frames | Unobstructed space enhances movement and workflow. |
Customizable dimensions | Tailored size improves accessibility for equipment and vehicles. |
Large roll-up doors | Easy access for vehicles, boosting operational efficiency. |
Flexible floor plans | Mezzanine levels and adaptable layouts optimize storage efficiency. |
Heavy-duty shelving | Efficient organization reduces clutter and supports functional design. |
Listing large equipment and work zones helps place doors, windows, and electrical outlets efficiently. Reinforced concrete slabs provide a strong, level surface for heavy machinery, ensuring structural integrity and safety.
Designing for scalability is a key principle in modern warehouse design. Expandable building systems allow owners to start with the necessary square footage and expand as business grows. Modular characteristics enable easy modifications, so companies can add new sections without stopping operations. Steel structures designed with growth in mind can reduce expansion costs by about 35% over 15 years compared to concrete alternatives. Pre-engineered steel buildings minimize operational disruptions and maximize return on investment throughout the facility's lifespan.
Expandable building systems support future growth.
Modular framing allows quick additions without halting operations.
Clear-span designs make expansion easier and maintain structural integrity.
Modern warehouse design focuses on scalability to meet evolving needs.
Modern warehouse design integrates advanced technology to boost efficiency and storage efficiency. Automation systems, such as conveyor belts and robotic sorting, streamline material handling. Automated guided vehicles (AGVs) move goods safely and quickly. Inventory management systems and warehouse management software track products and optimize workflows. Artificial intelligence and machine learning algorithms improve decision-making and predict inventory needs.
Automation systems increase efficiency and reduce manual labor.
AGVs enhance safety and speed in warehouses.
Inventory management software supports functional design and storage efficiency.
AI and machine learning optimize operations and future planning.
Investing in technology and designing for scalability ensures warehouses remain competitive and adaptable.
Steel structure warehouses must follow strict building codes to ensure safety and reliability. In China, the "Code for Loading on Building Structures GB 50009-2025" guides engineers in designing safe warehouses. This code combines local experience with international safety standards, helping projects meet both national and global requirements.
Code Name | Description |
|---|---|
Code for Loading on Building Structures GB 50009-2025 | This code synthesizes domestic experience while incorporating international best practices. |
Following these codes ensures that steel structure warehouses can handle expected loads and environmental conditions. Adhering to international safety standards also helps companies operate globally and protect their investments.
A strong safety program is essential for steel structure warehouses. Facilities must comply with international safety standards, such as NFPA 13 for fire sprinkler systems and ISO 45001 for occupational health and safety management. Key safety features include:
Installing fire sprinkler systems to prevent fire spread and reduce damage.
Creating a comprehensive safety program that covers hazard identification, risk assessment, and control measures.
Conducting regular safety training and emergency drills for all employees.
Establishing clear communication protocols for reporting hazards and sharing safety updates.
Performing routine safety inspections and audits to identify and fix potential hazards.
Encouraging employees to report hazards and near-misses for timely evaluation.
Emergency exits and evacuation routes play a vital role in safety. Warehouses must have at least two exit routes, as required by OSHA. Egress plans determine the size, number, and location of stairs or ramps. Permanent exit routes, fire-safe designs, and clear signage are necessary. These plans are reviewed by city engineers and fire marshals to ensure safety for all occupants.
Accurate load calculations are critical for warehouse safety. Engineers must consider wind, snow, and equipment loads when designing steel structure warehouses. Inadequate calculations can lead to serious problems, such as deflection, leakage, or even structural instability.
Consequence | Cause of Consequence |
|---|---|
Deflection | Underestimating wind uplift |
Leakage | Incorrect purlin spacing |
Structural instability | Poor connection detailing |
Corrosion | Inadequate bracing systems, poor drainage |
Vibration fatigue | Continuous micro-movements in joints |
Regular reviews and updates of load calculations help maintain safety and extend the life of the warehouse. Proper planning and adherence to international safety standards protect both people and property.
Integrating every design factor is essential for a high-performing warehouse. Each warehouse requires careful planning to ensure durability, safety, and efficiency. Working with experts like Jiangsu Lianfang Steel Structure Engineering Co., Ltd. guarantees reliable solutions for any warehouse project.
The durability of steel construction extends building lifespan while maintaining structural integrity under demanding warehouse operating conditions. This longevity reduces replacement costs and ensures consistent facility performance over decades of operation, providing exceptional return on investment for warehouse operators.
Professional guidance helps warehouse owners address future needs. Consider all aspects before starting your next warehouse to achieve lasting value.
Steel structure warehouses offer high durability and efficient use of space. They support heavy loads and maximize storage. The open design allows for easy access and organization. This approach improves workflow and increases overall storage capacity.
Design flexibility allows for custom layouts and future changes. It supports different storage needs, such as pallet racks or automated systems. This flexibility ensures that the warehouse can adapt to new storage requirements as business grows.
Proper material selection, corrosion protection, and regular maintenance all impact durability. These factors help protect storage from environmental damage. Routine inspections and quality coatings keep the structure strong and reliable for long-term storage.
Yes. Steel structure warehouses can integrate advanced storage technology, such as automated retrieval systems and smart inventory controls. The open spans and design flexibility make it easy to add new technology, improving storage efficiency and accuracy.
Steel structure warehouses adapt to various industries by offering design flexibility. They can support cold storage, bulk storage, or high-bay racking. This adaptability ensures that each industry can maximize storage and meet specific operational needs.
