Annual Production Project of 200000 Tons of Cold Chain Food

Building area: The total building area of this project is 31724.81m2, of which the building area of the factory building is 30977.79m2; Building Floors: Part of the factory building has one above ground floor; The office area is located on the ground floor. Total height above ground: 22.05m (from outdoor floor to eaves height); 24.80m (height from outdoor floor to parapet top), structural form: single story factory frame structure.

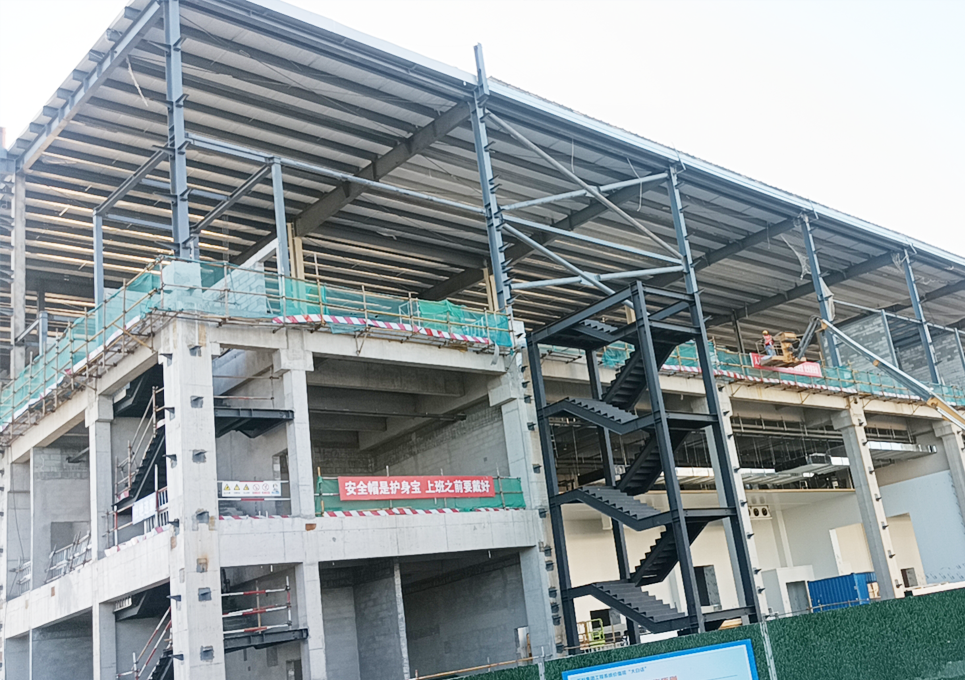

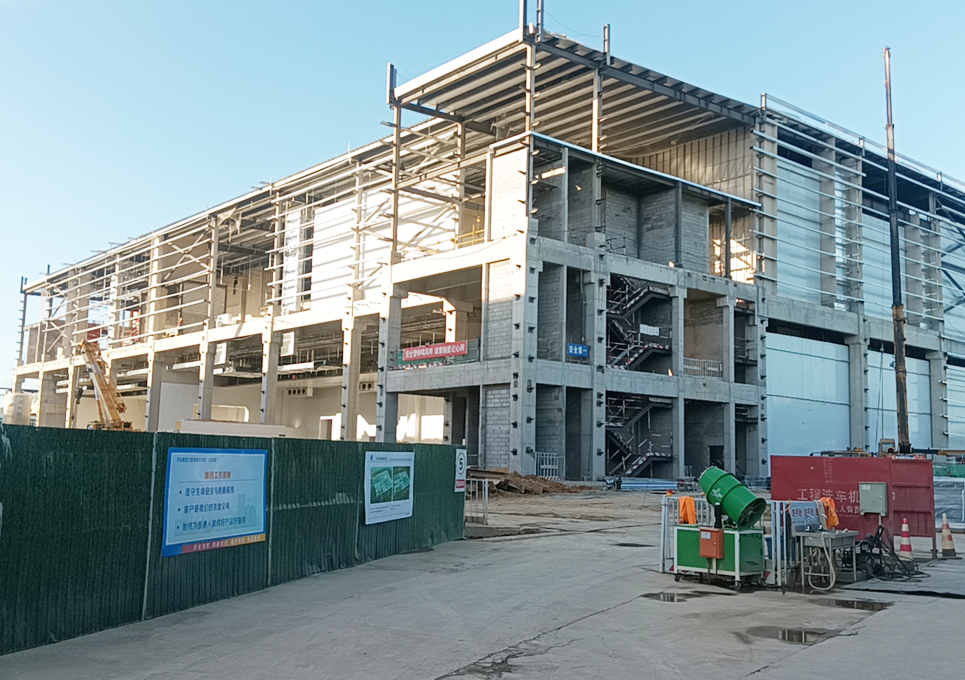

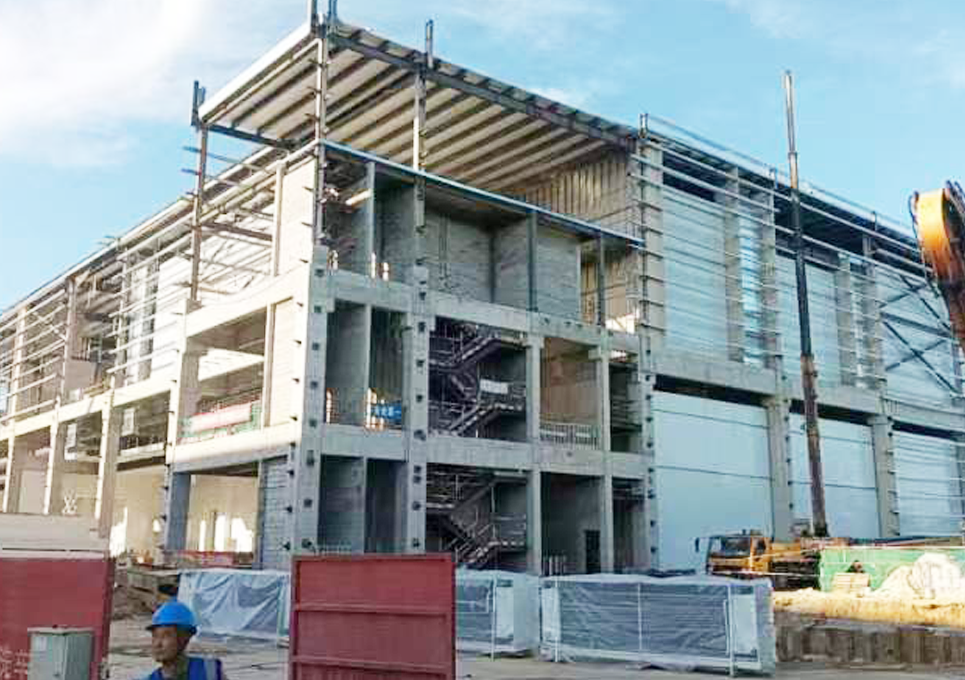

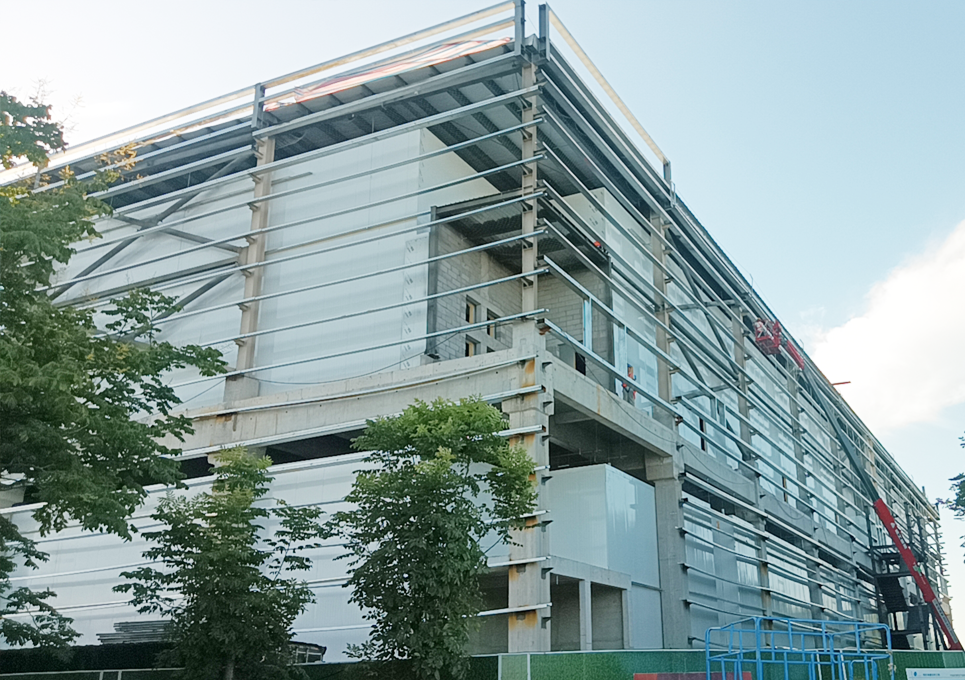

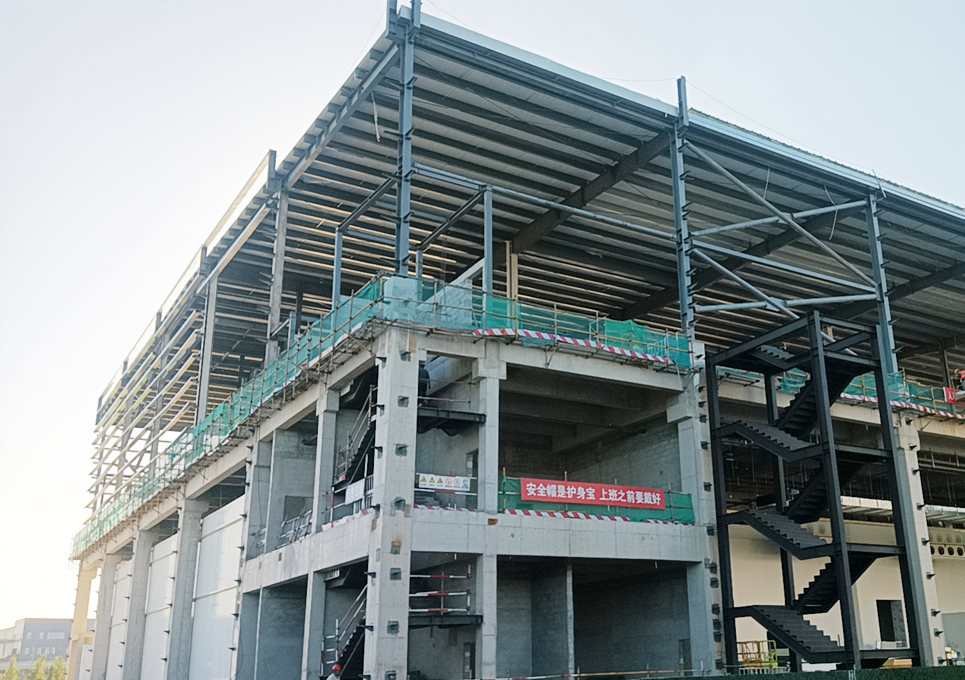

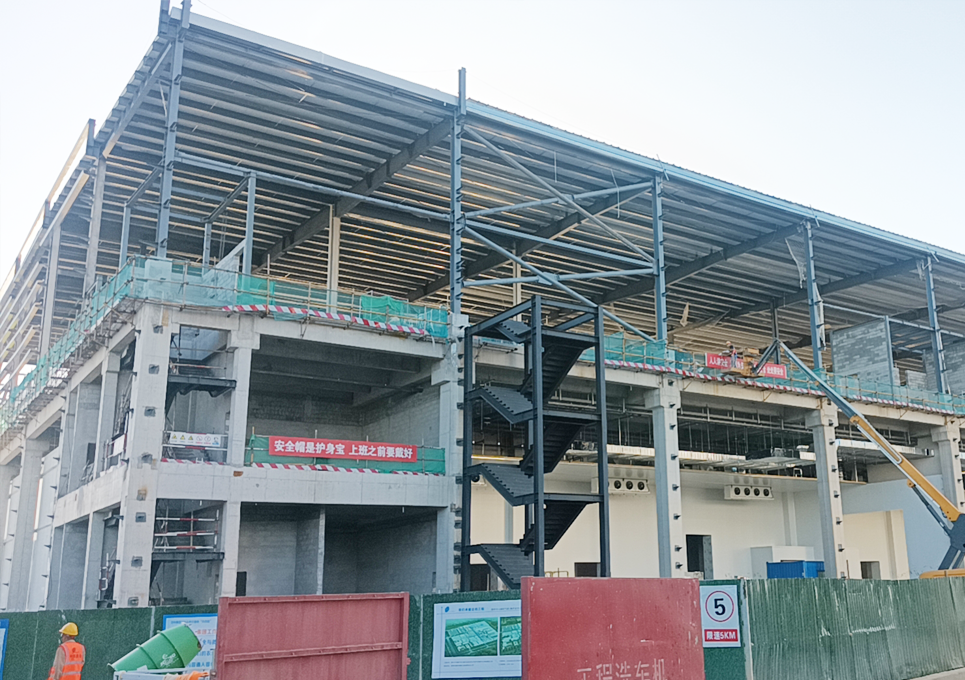

It consists of six spans: heavy-duty processing workshop, heavy-duty assembly workshop, heavy-duty welding workshop, assembly workshop, welding workshop, etc. Above ground level, all steel structure is adopted, with a basic column spacing of 12.3m; The factory columns are made of stepped columns, the roof beams are made of welded H-shaped variable cross-section steel beams, and the beams are rigidly connected to the columns. The roof purlins are made of honeycomb beams, and the wall beams are made of cold-formed thin-walled steel; The axis area is approximately 30996 square meters.
